When DIYing a protective case, careful planning and execution are crucial to ensure it reliably safeguards your gear. Here are the key considerations:

1. Define Protection Requirements:

What are you protecting? The needs for a camera, hunting rifle, or chemical samples differ vastly. Identify the primary threats: impact, water, dust, crushing, or temperature.

Where will it be used? Consider transportation methods (air travel, ATV, hiking), climate extremes, and potential hazards like saltwater immersion.

2. Critical Design & Material Choices:

Shell Material:

Plastic Totes: Affordable but often lack structural integrity and true waterproof seals. Suitable only for light-duty, dry environments.

Modified Commercial Cases: Starting with a used or basic polymer case (e.g., a generic hardcase) and upgrading it is often more effective than building from scratch.

Wood/Metal: Heavy, difficult to seal properly, and can corrode or splinter. Not recommended for reliable field use.

Interior Cushioning:

Closed-Cell foam (e.g., polyethylene, EVA) is essential. It does not absorb water. Avoid open-cell foam (like upholstery foam), which acts like a sponge.

Use pick-and-pluck foam or custom CNC-cut layers for a precise, snug fit that prevents equipment movement.

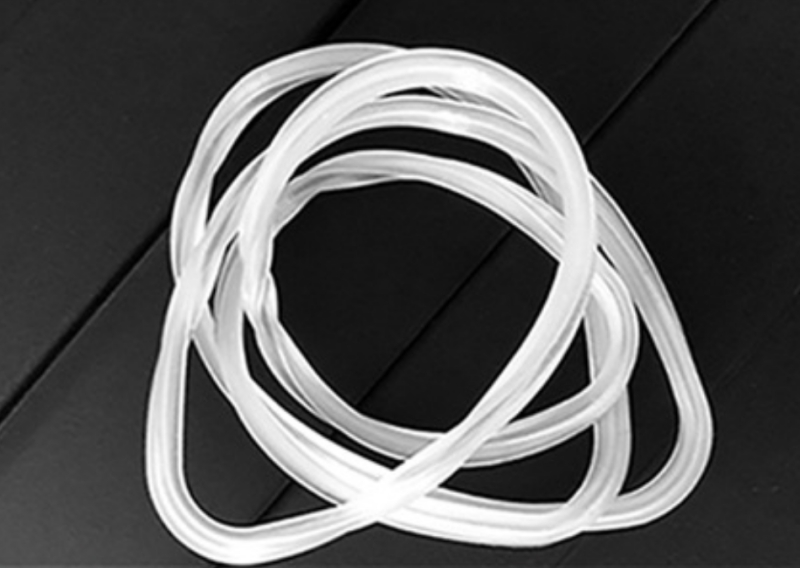

Sealing System: This is the hardest part to DIY. A continuous gasket in a machined channel is ideal. Simple adhesive weather stripping often fails under pressure or over time.

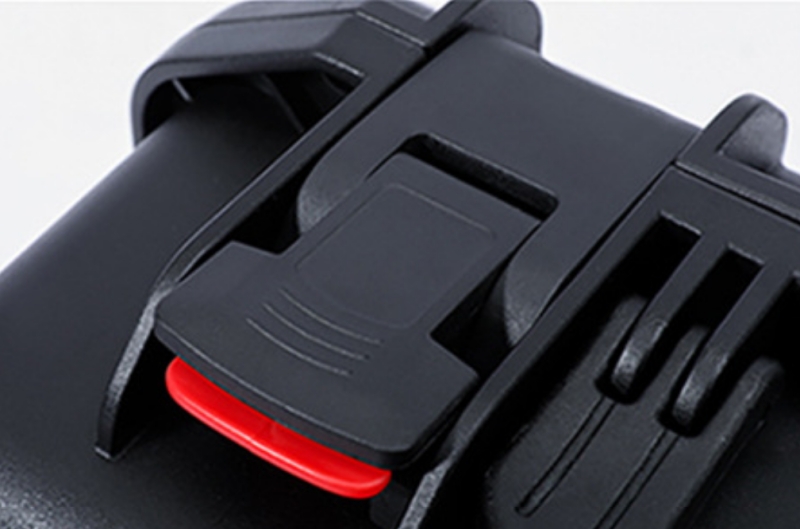

Latches & Hinges: Use solid, metal hardware. Plastic latches will break. Consider pressure relief valves (for altitude changes) if full waterproofing is achieved.

3. Key Construction Pitfalls to Avoid:

Inadequate Sealing: Seams, corners, and cable ports are weak points. Test thoroughly with paper towels inside during a water spray test.

Poor Shock Isolation: Foam must be the correct density—too soft offers no protection; too hard transmits shock. Equipment should not touch the hard shell.

Ignoring Internal Securement: All items must be immobilized. A loose item inside becomes a projectile during a drop.

Overlooking Condensation: A perfectly sealed case can trap moisture. Include desiccant packs or a breathable vent with a waterproof membrane.

4. Mandatory Testing:

Water Test: Seal the case with dry paper inside. Submerge or hose it down vigorously for 10-15 minutes. Check for any moisture.

Drop Test: From a realistic height (e.g., waist level) onto a hard surface on its corners and seams.

Functional Test: Ensure latches/openings work easily with gloves on, and the case remains manageable to carry.

Conclusion:

DIY cases can be viable for low-risk, budget-conscious projects. However, for protecting valuable, sensitive, or mission-critical gear in harsh conditions, commercially manufactured cases engineered to standards like IP67 or MIL-STD-810G offer far more reliable protection. The cost and complexity of DIYing a truly robust case often outweigh the savings. If proceeding, prioritize shell integrity, professional-grade sealing, and proper closed-cell foam.
